Geographic Information Systems (GIS) is an innovative way of visualizing data spatially to understand
relationships, patterns, and trends. The Third Coast CFAR offers GIS services to members through the
BSIS Core. This gallery includes several examples of the types of maps useful in HIV research. If you
are interested in using geospatial analyses in your work, please contact a CFAR research navigator
at cfar@northwestern.edu.
Descriptive Maps

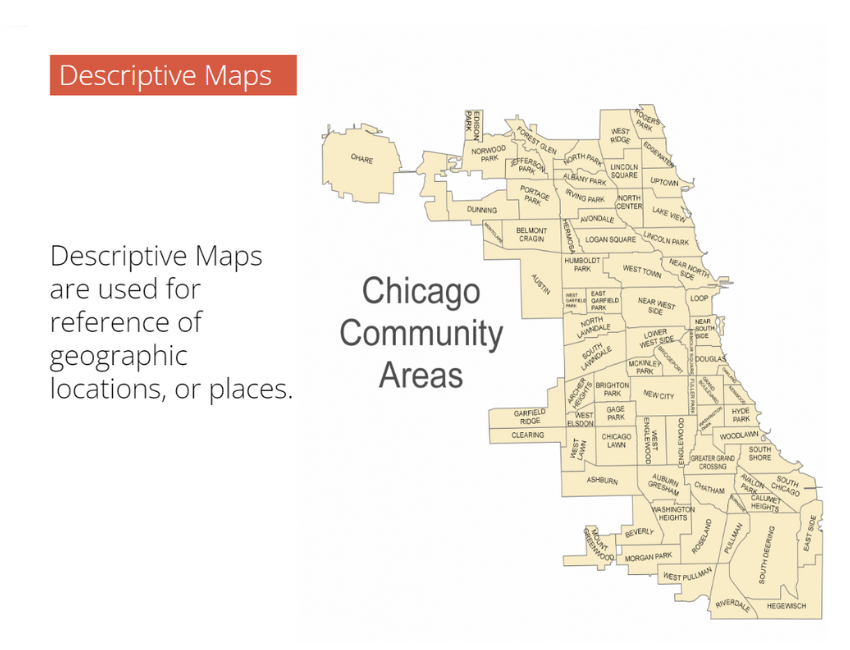

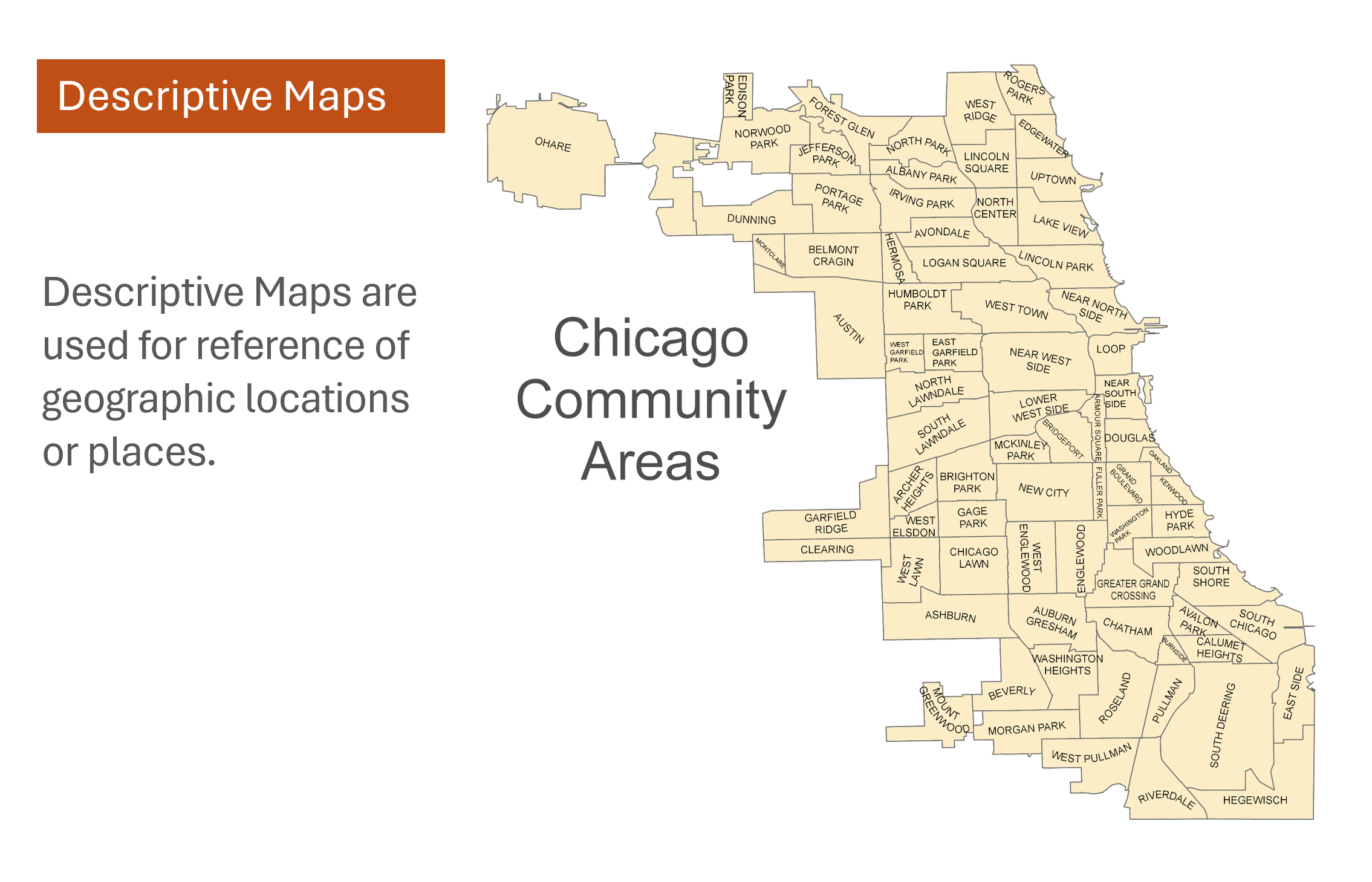

Descriptive Maps are used for reference of geographic locations, or places.
Choropleth Maps

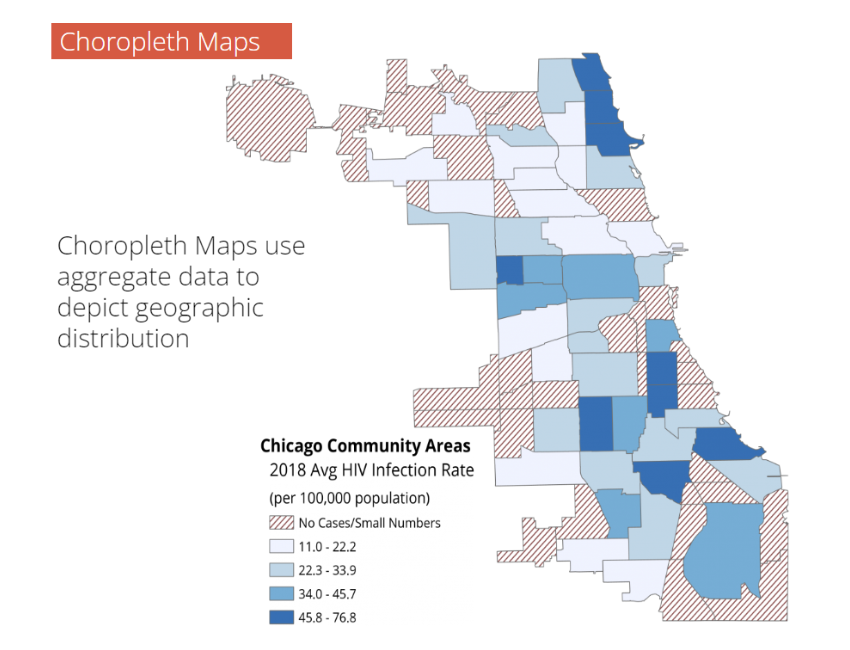

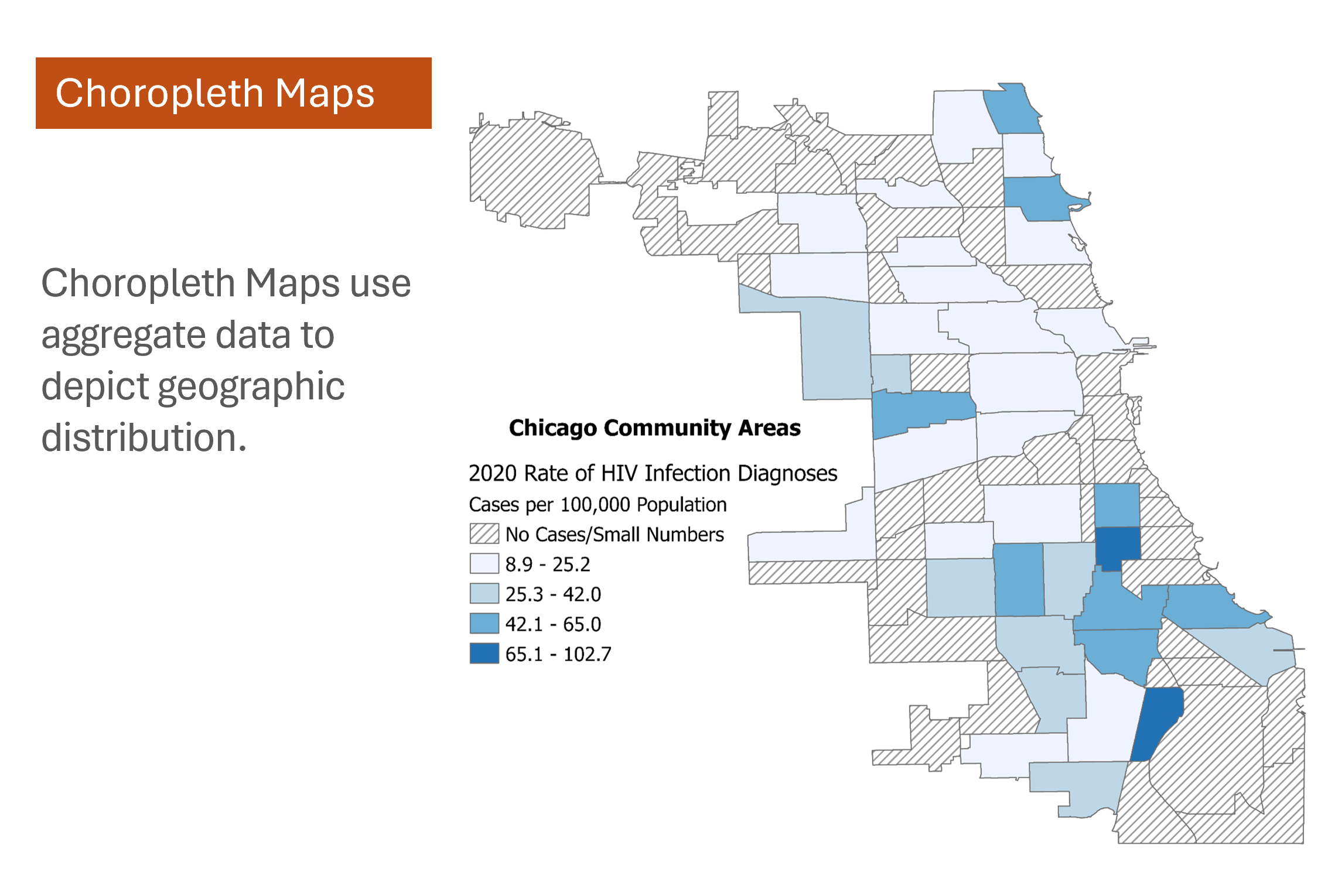

Choropleth Maps use aggregate data to depict geographic distribution

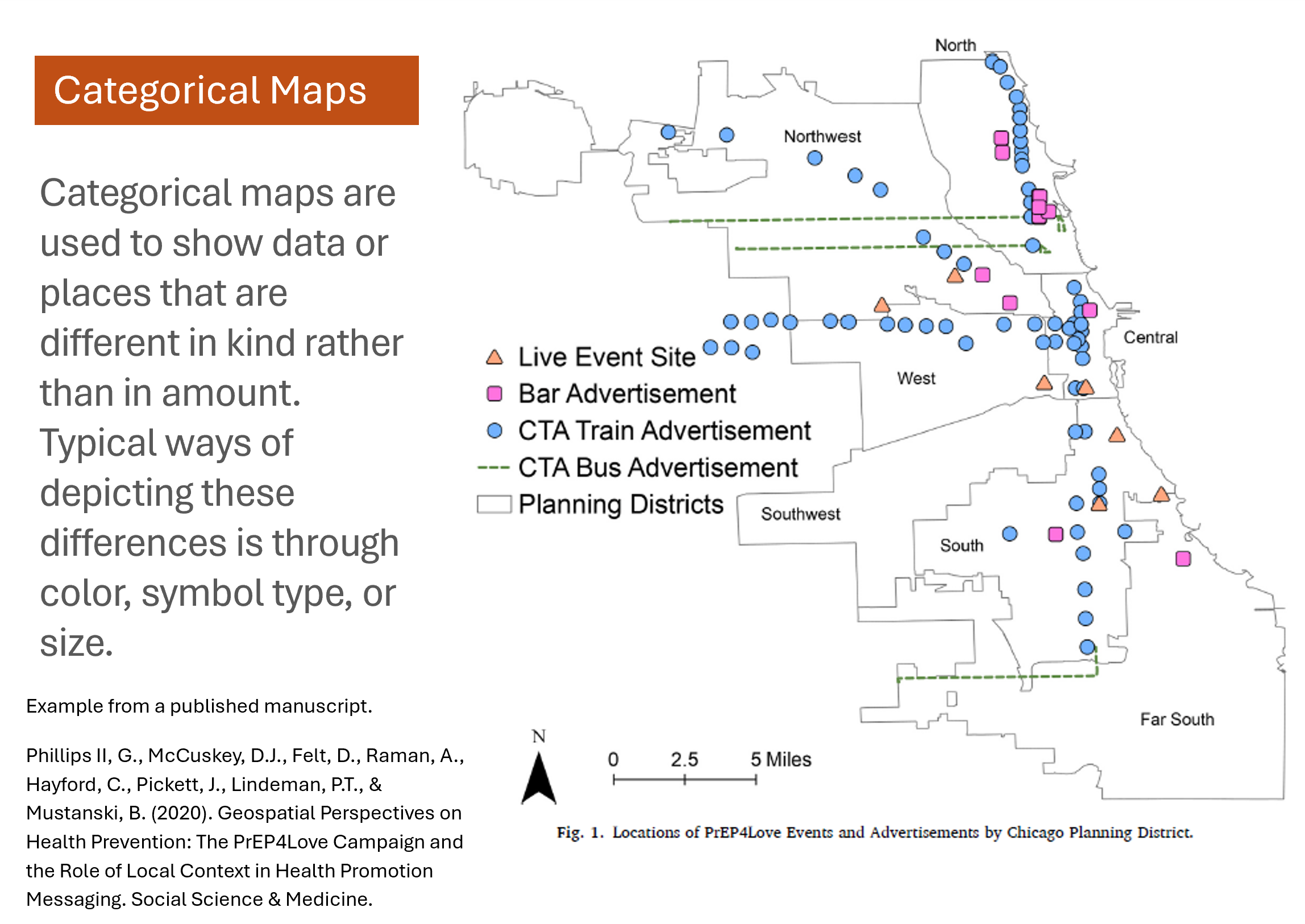

Categorical Maps

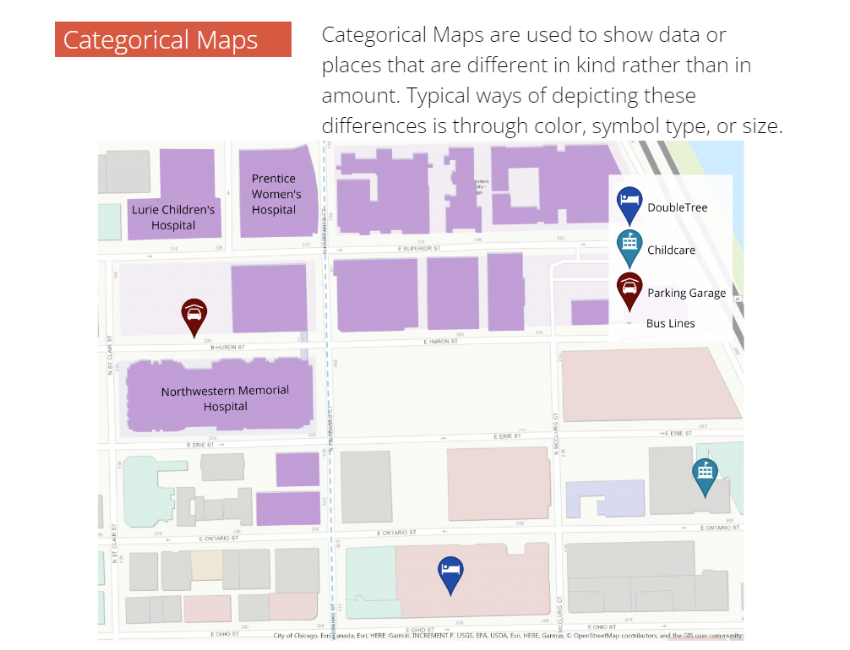

Categorical Maps are used to show data or places that are different in kind rather than in amount.
Typical ways of depicting these differences is through color, symbol type, or size.

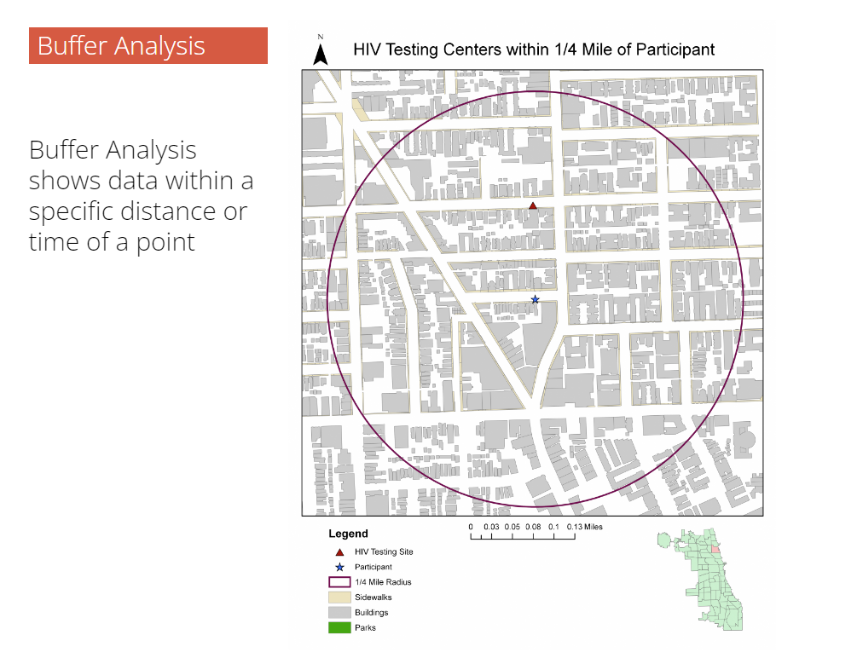

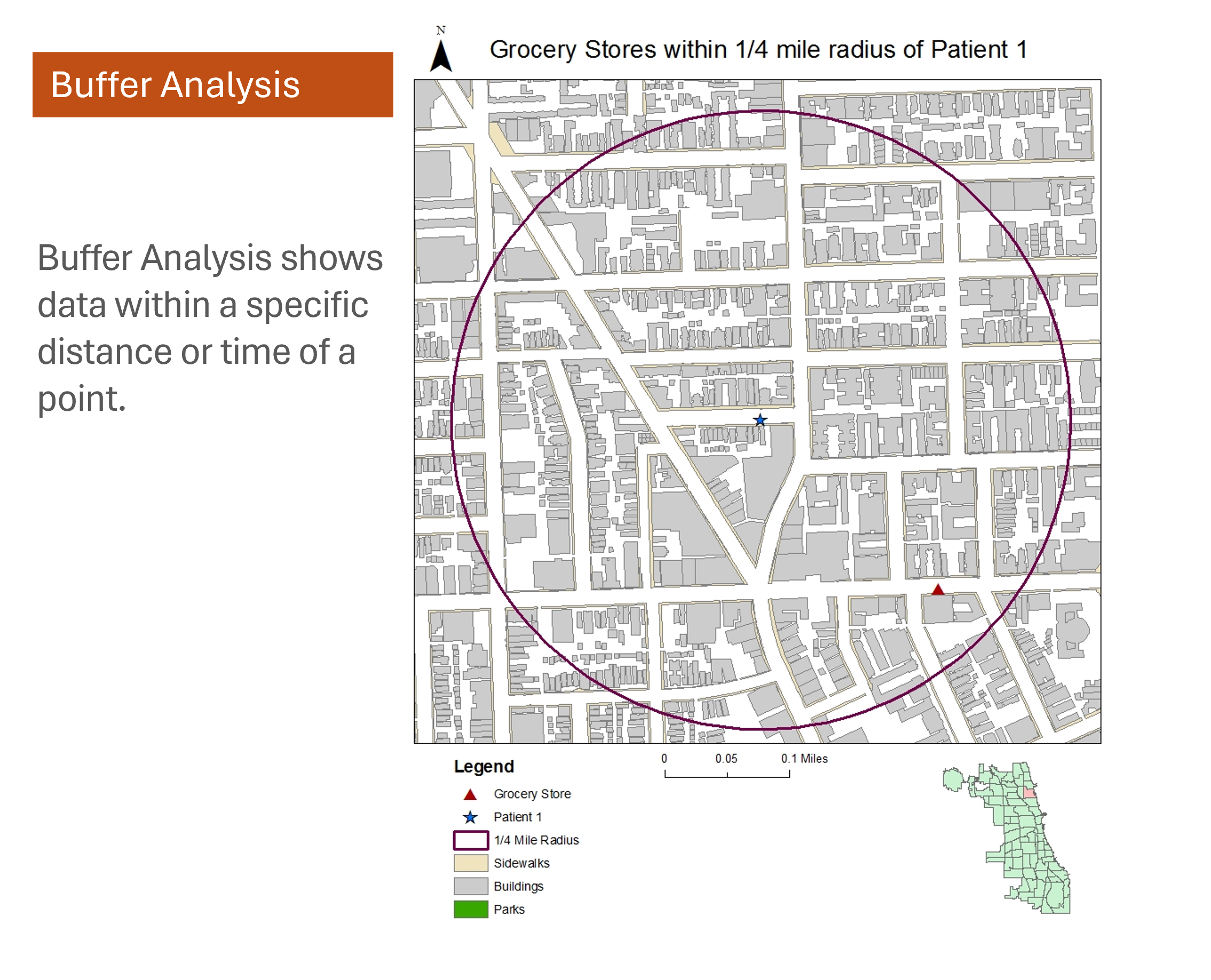

Buffer Analysis shows data within a specific distance or time of a point
Buffer Analysis
Density Maps

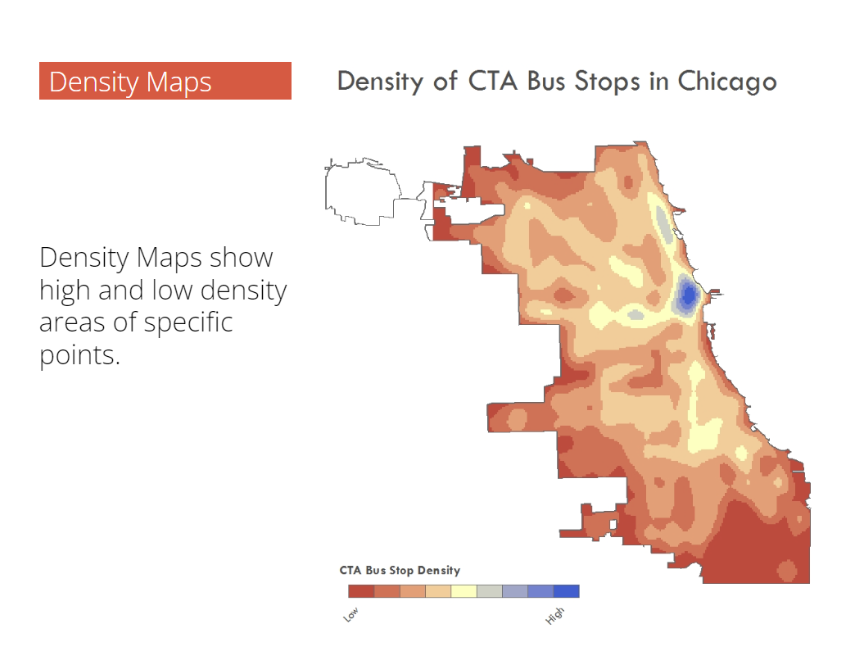

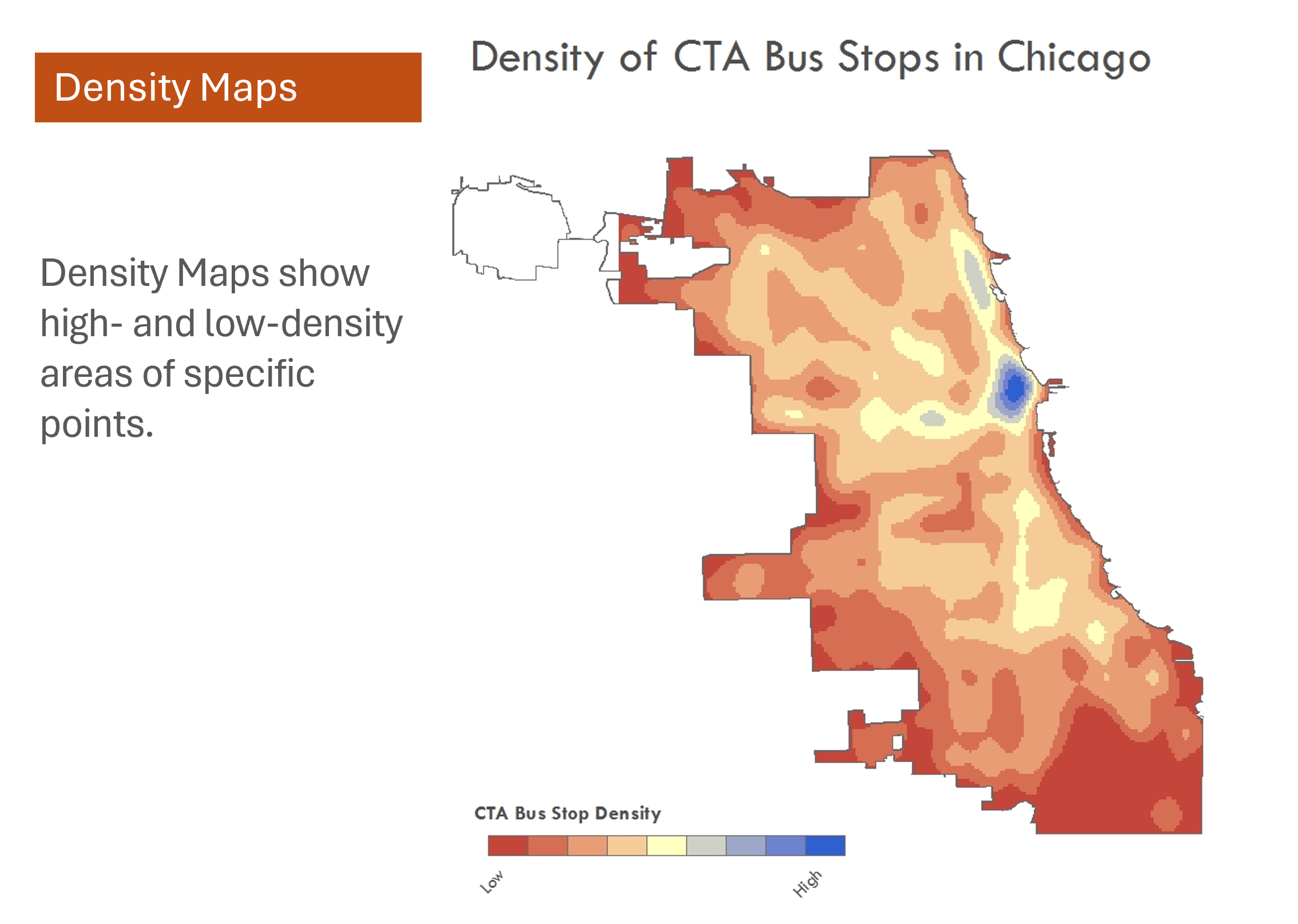

Density Maps show high and low density areas of specific points.

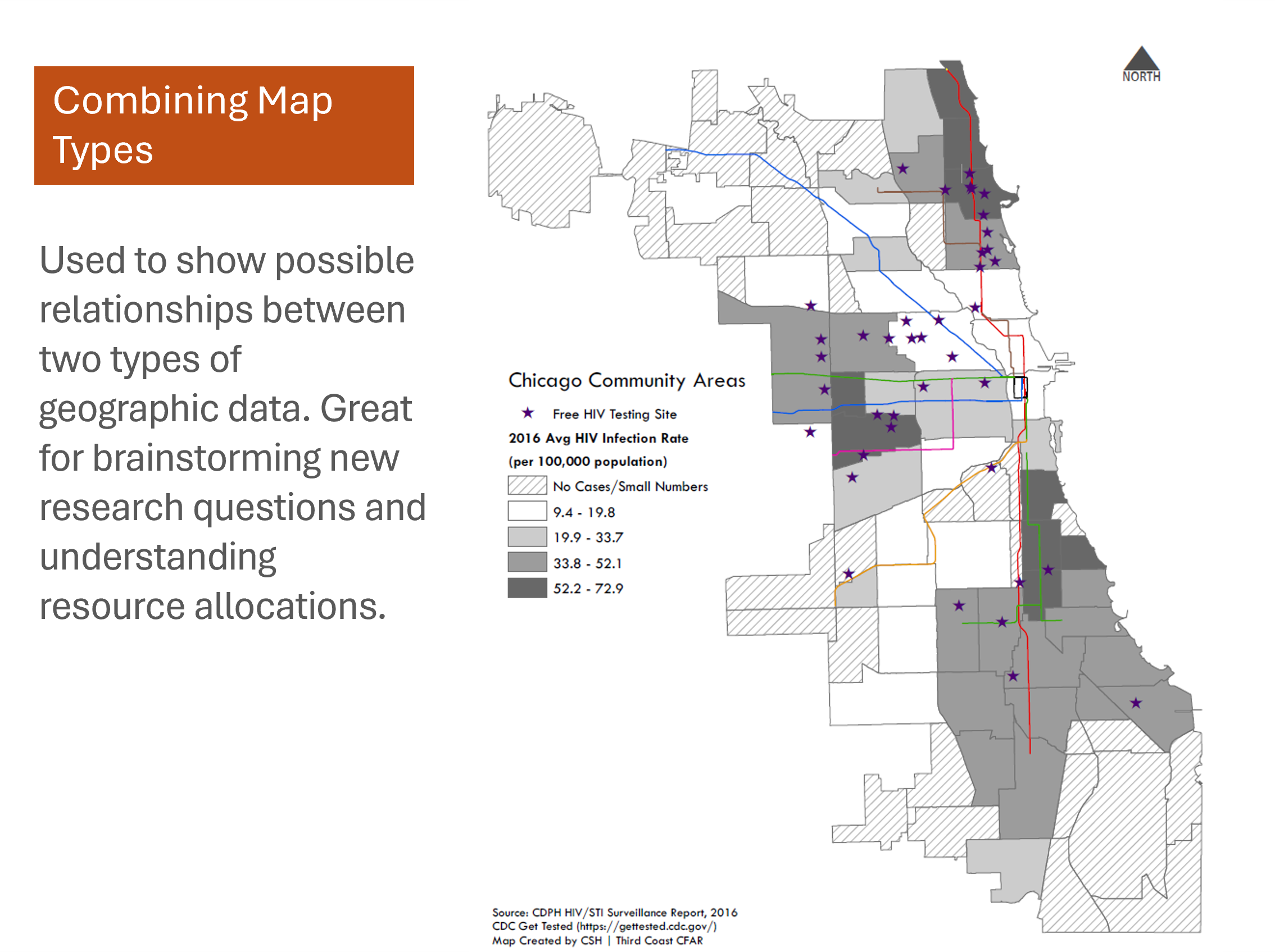

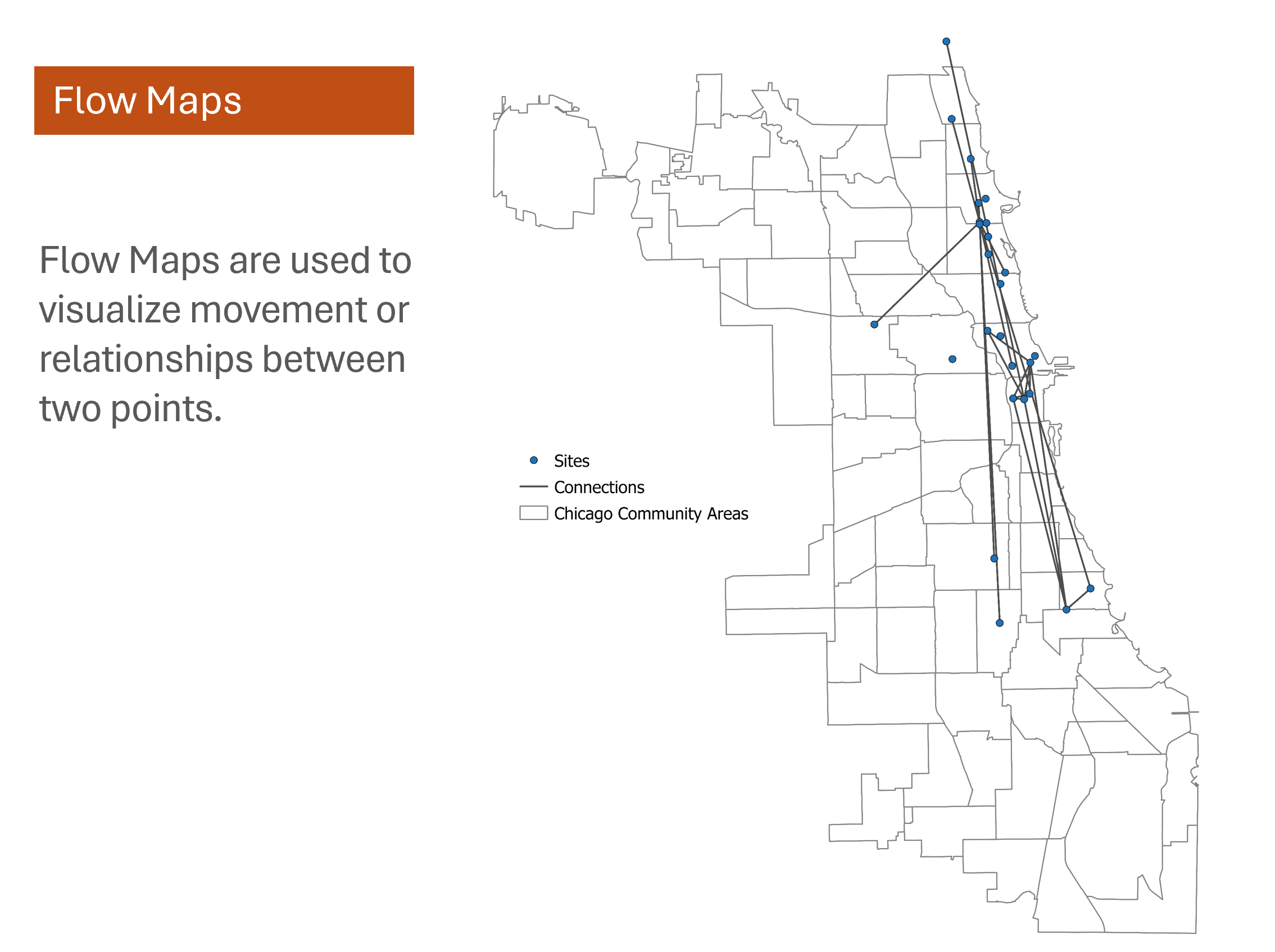

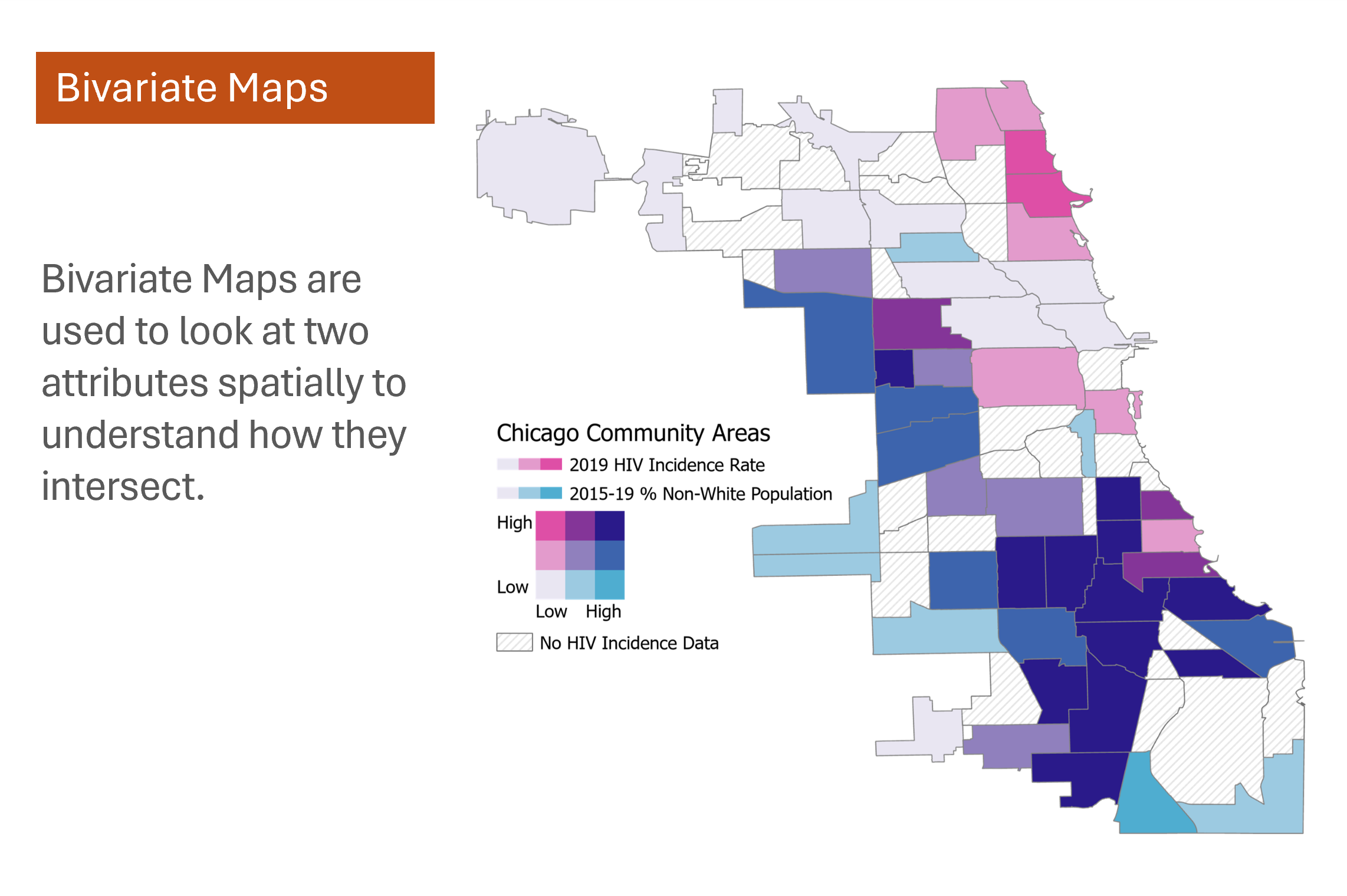

Combining Map Types

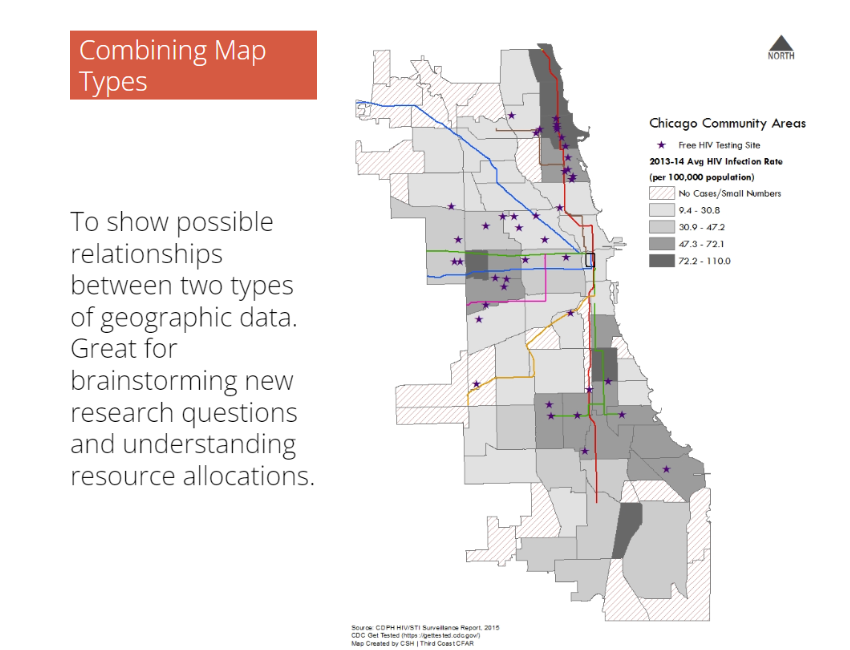

To show possible relationships between two types of geographic data. Great for brainstorming new research questions and understanding resource allocations.

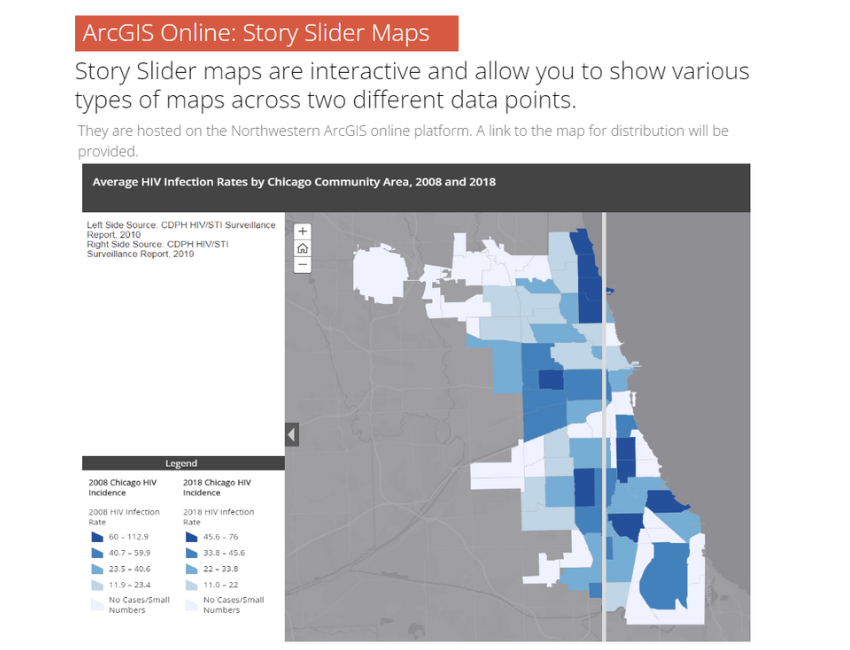

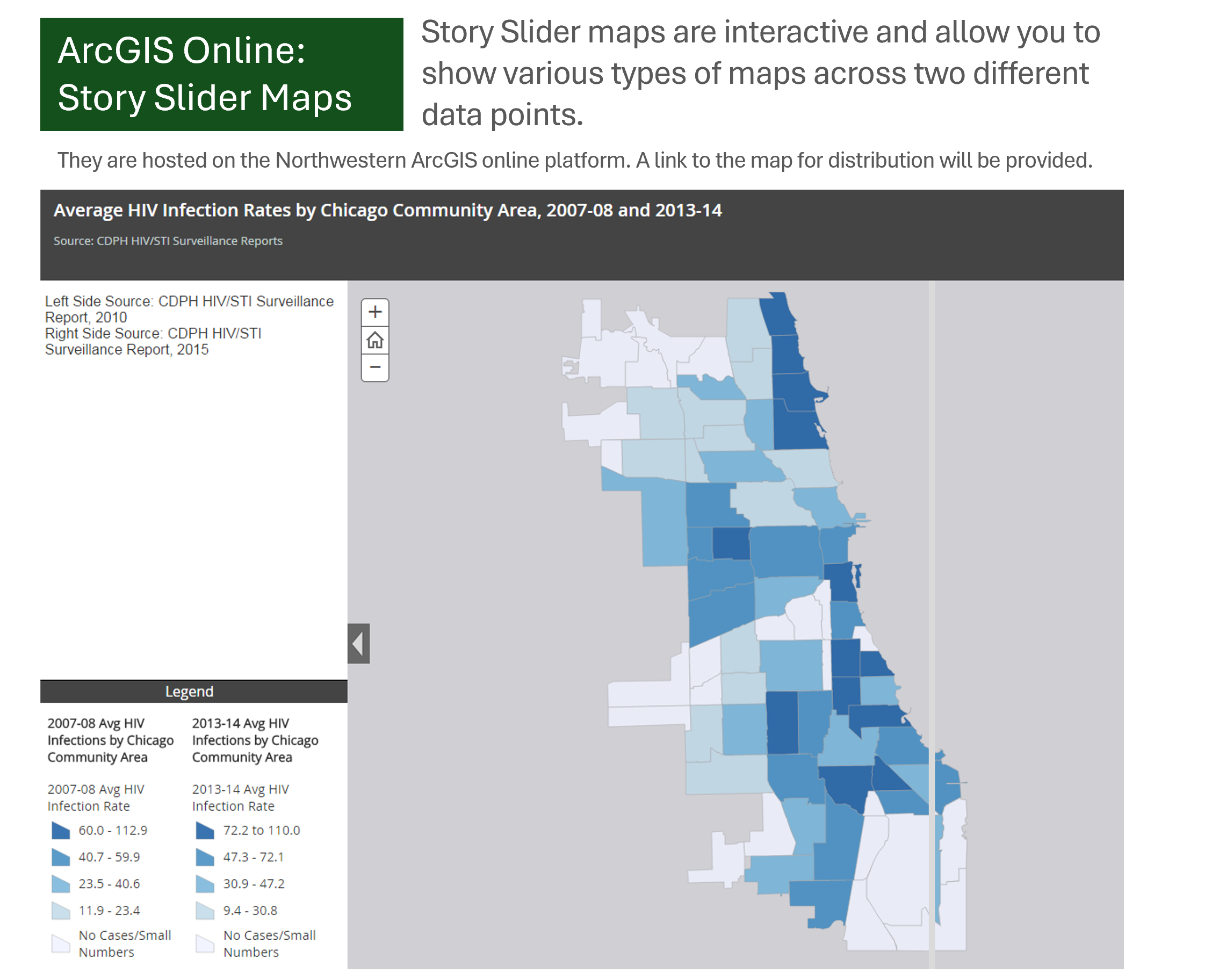

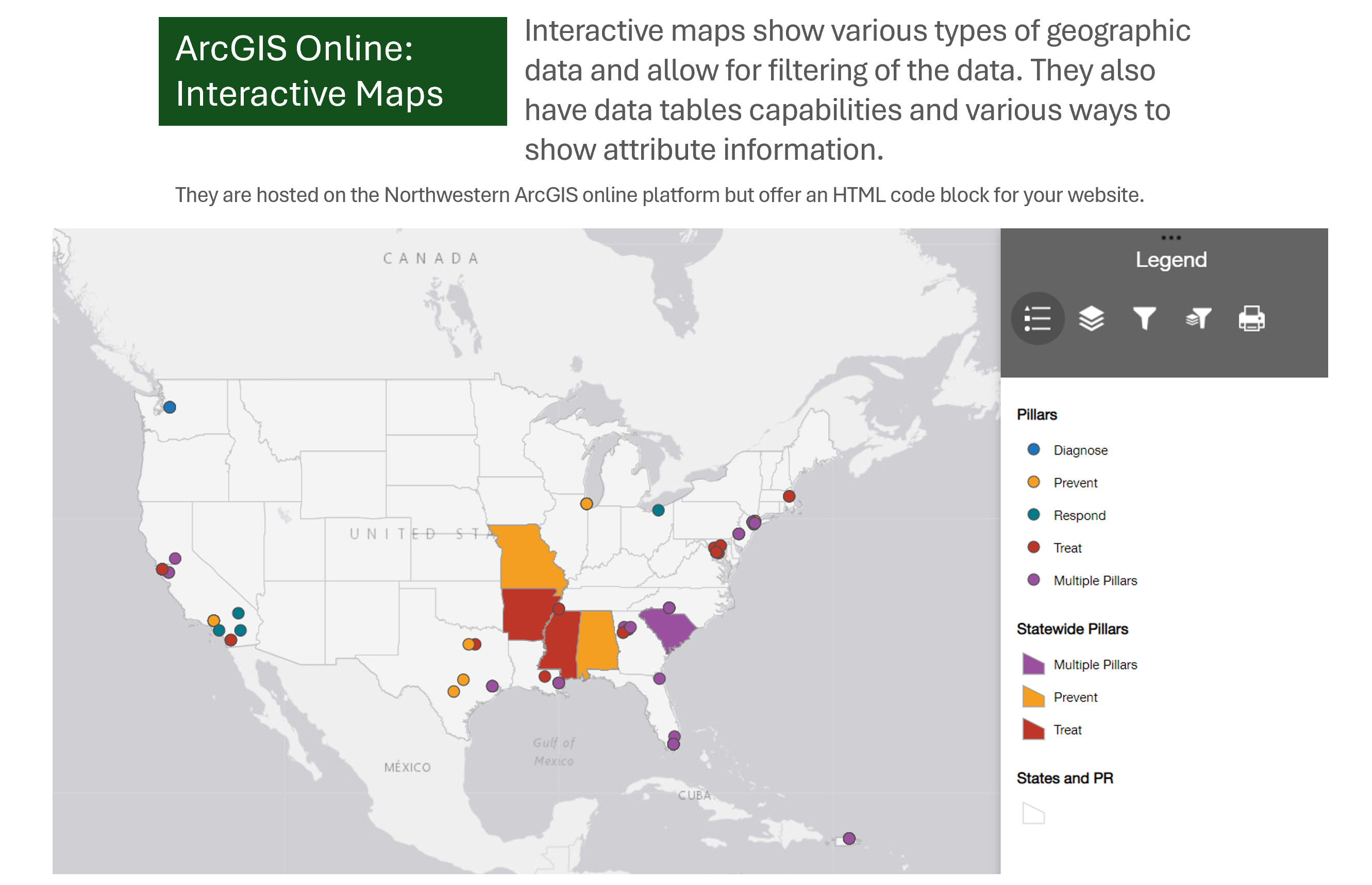

Story Slider maps are interactive
and allow you to show various types of maps across two different data points.
ArcGIS Online: Story Slider Maps
They are hosted on the Northwestern ArcGIS online platform. A link to the map for distribution will be provided.

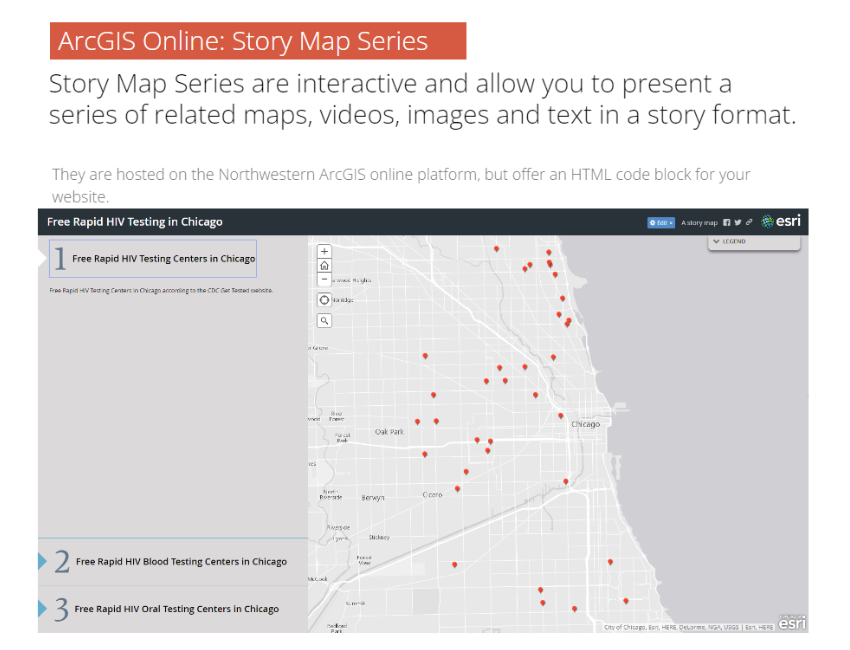

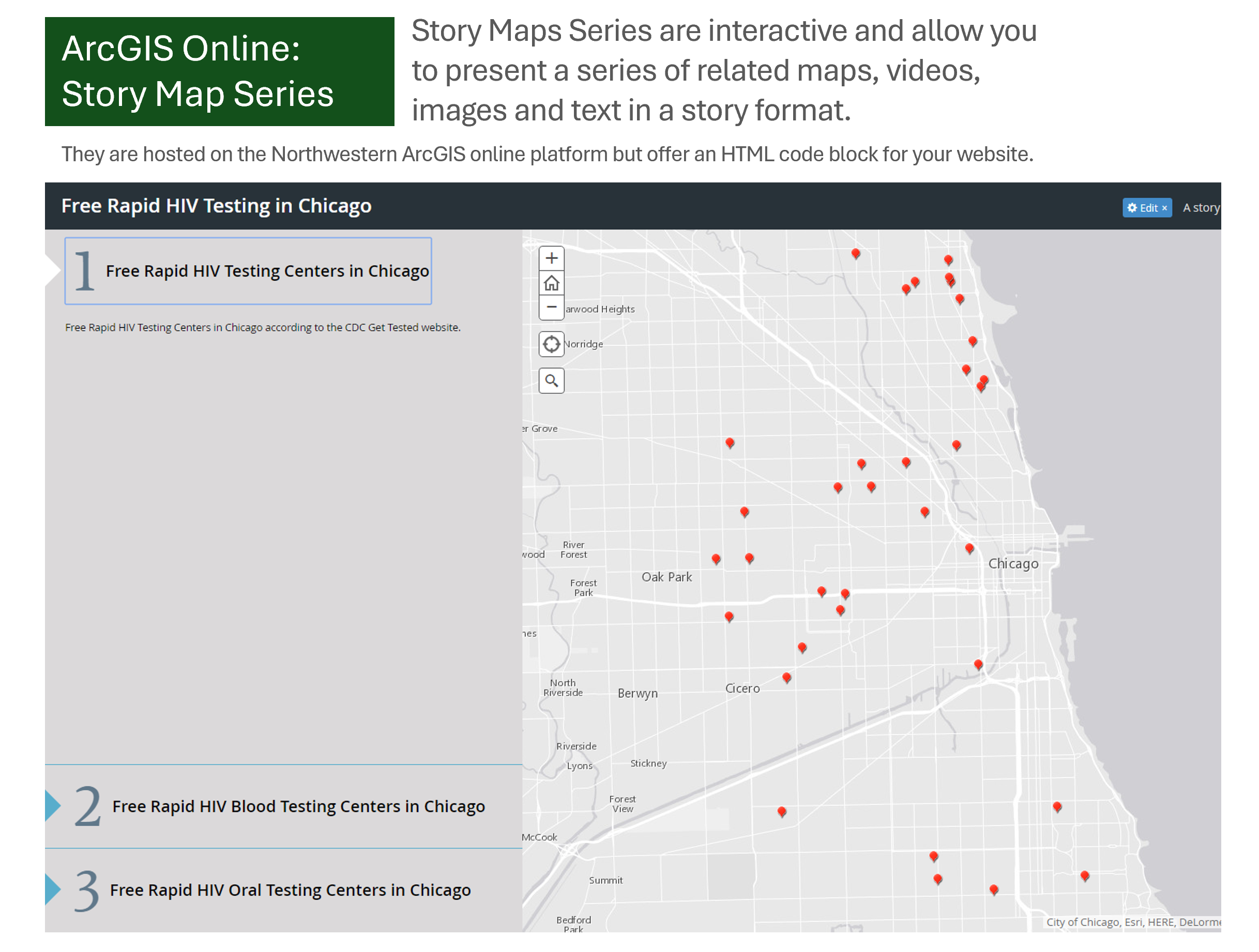

Story Map Series are interactive
and allow you to present a series of related maps, videos, images and text in a story format.
ArcGIS Online: Story Map Series
They are hosted on the Northwestern ArcGIS online platform, but offer an HTML code block for your website.

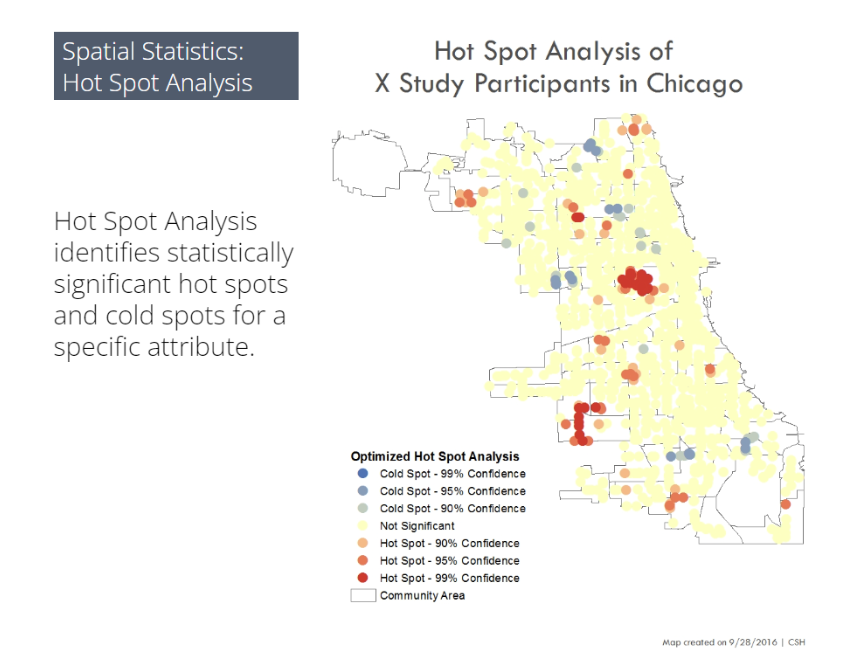

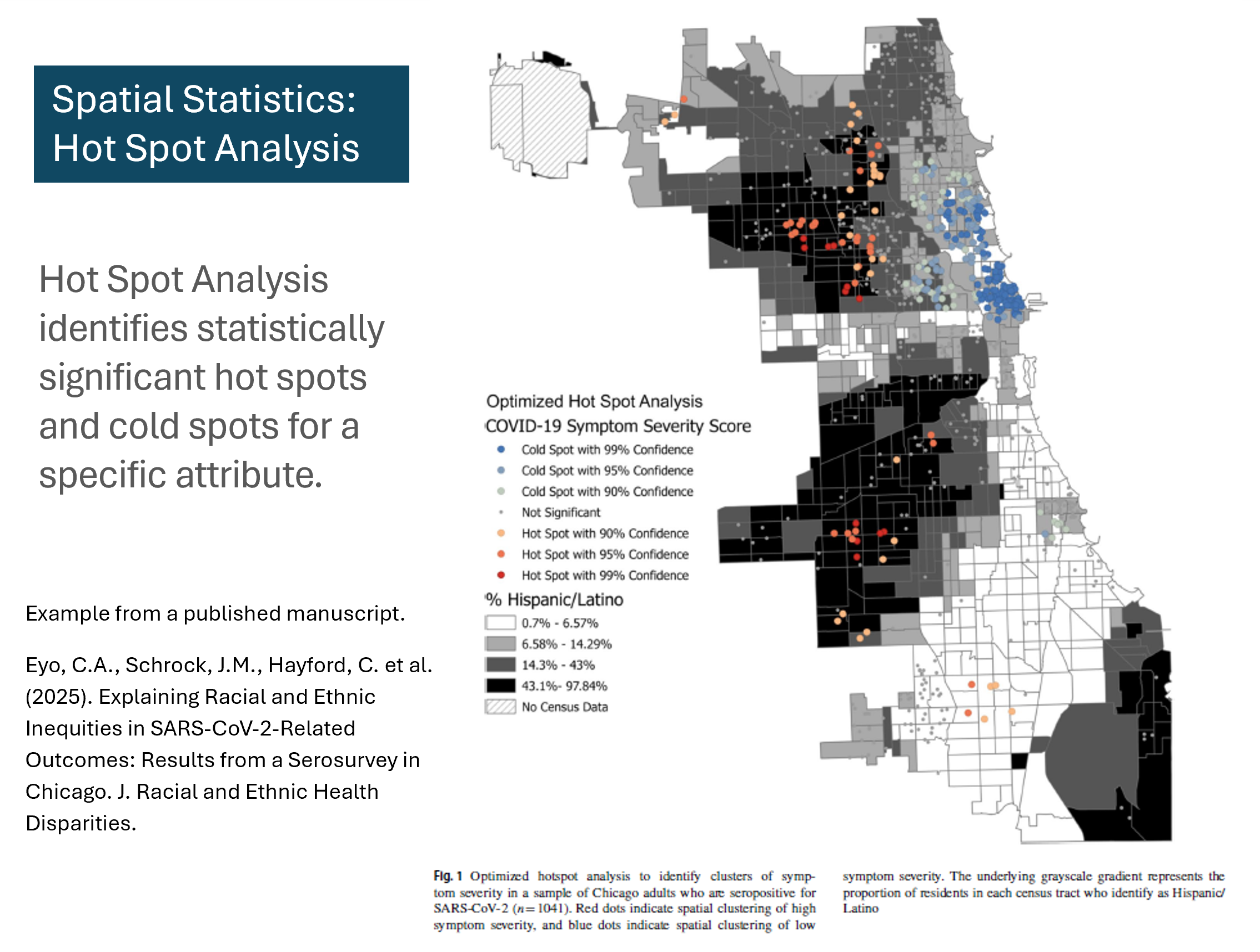

Hot Spot Analysis identifies statistically significant hot spots and cold spots for a specific attribute.
Spatial Statistics:
Hot Spot Analysis

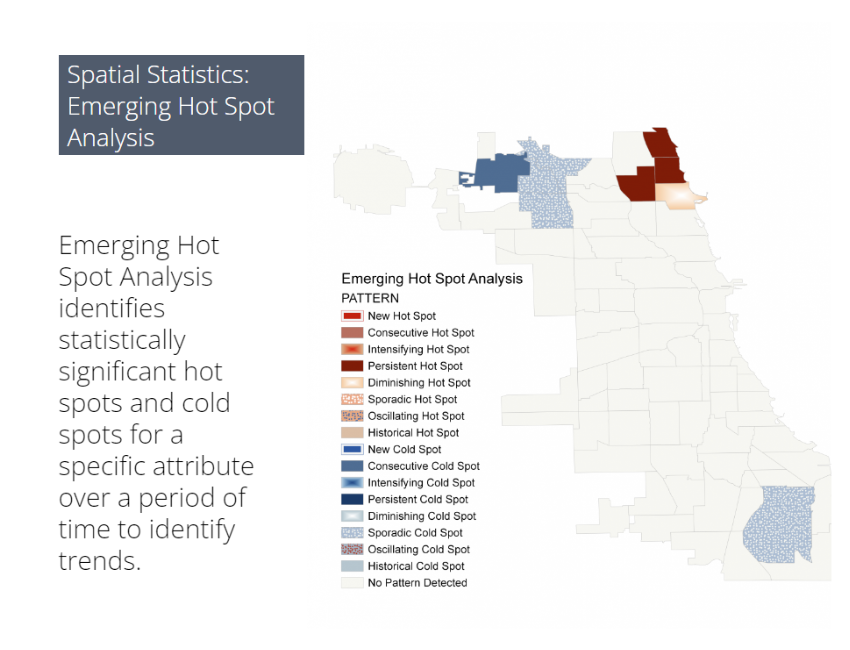

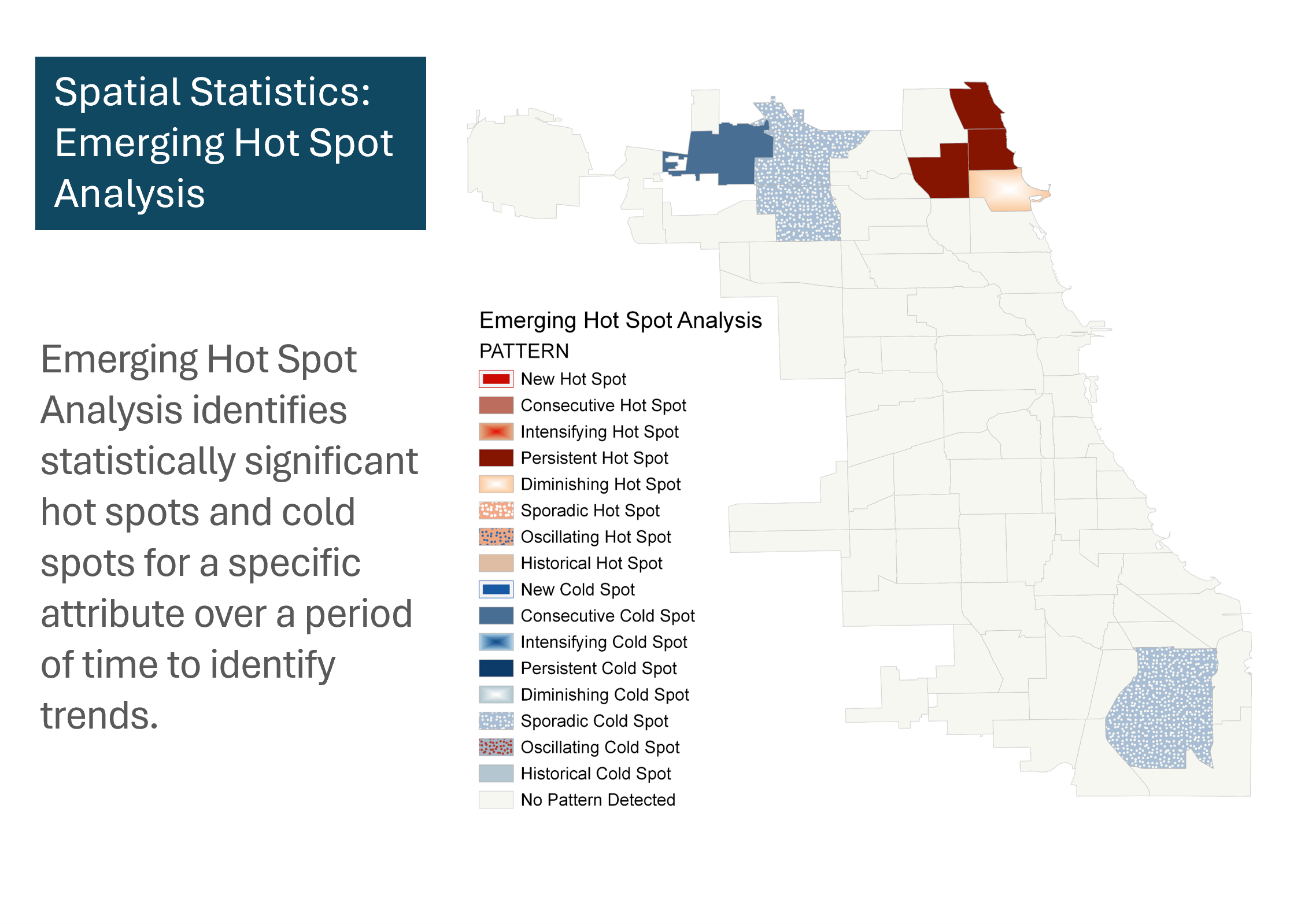

Emerging Hot Spot Analysis identifies statistically significant hot spots and cold spots for a specific attribute over a period of time to identify trends.
Spatial Statistics:
Emerging Hot Spot Analysis
Spatial Statistics:
Average Nearest Neighbor

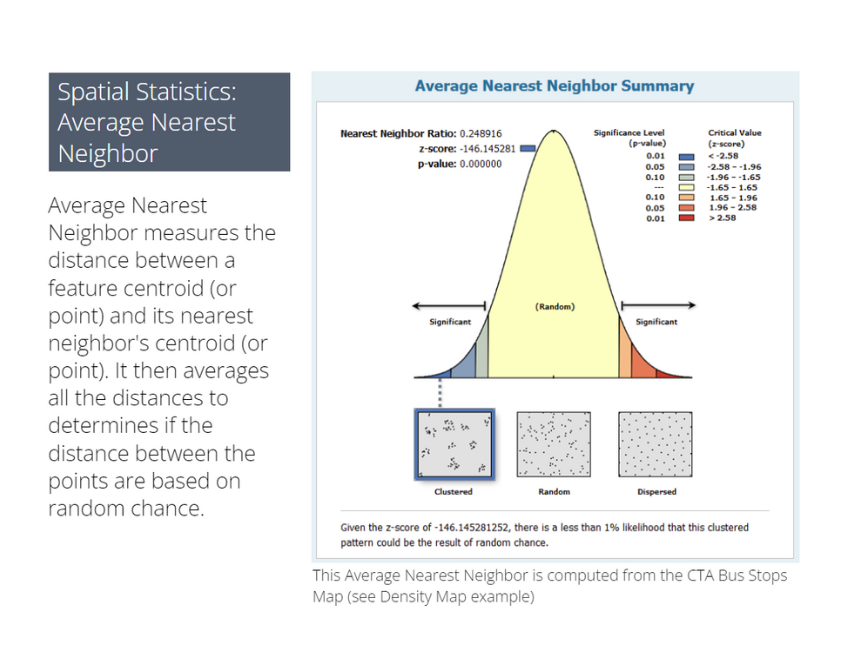

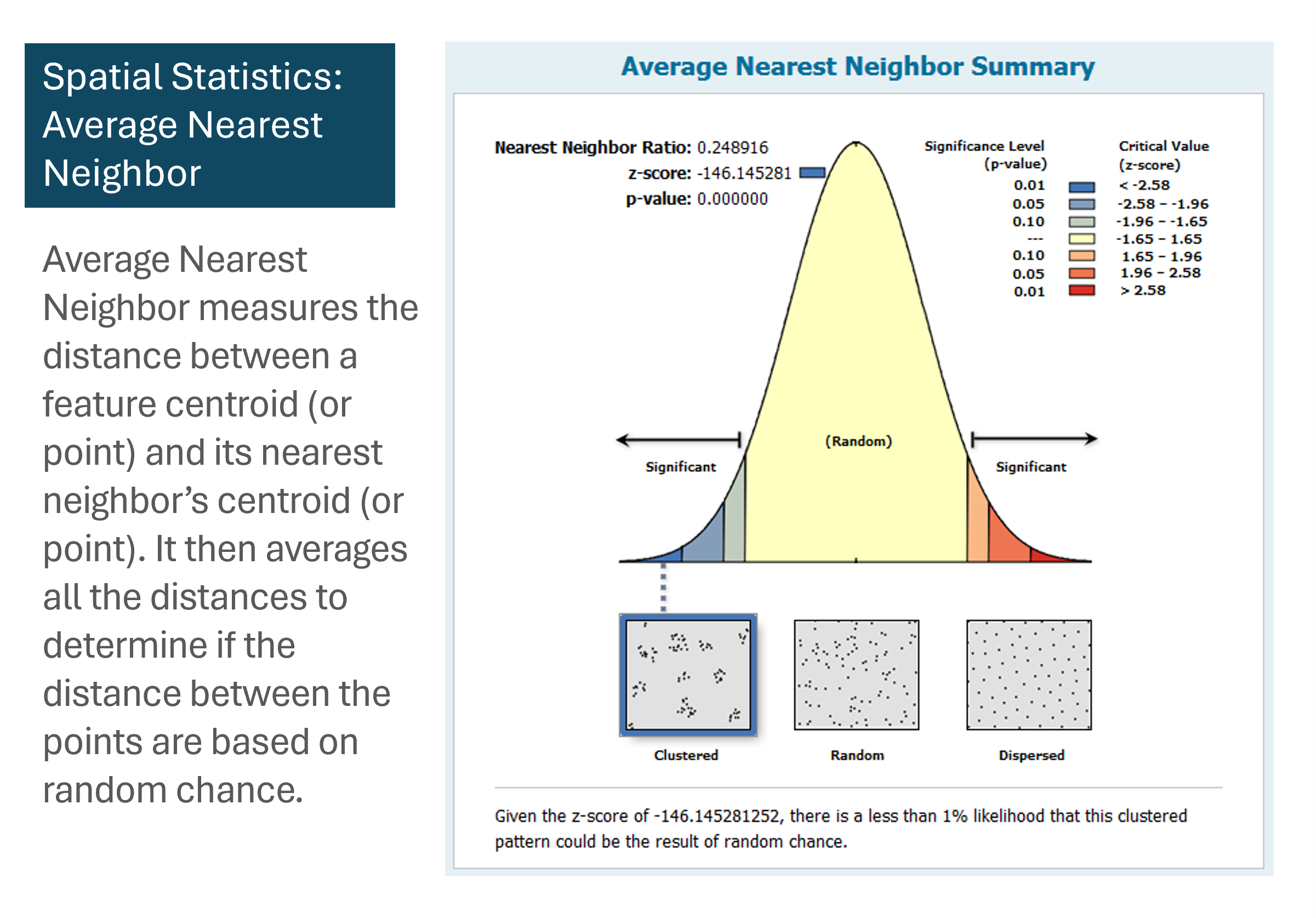

Average Nearest Neighbor measures the distance between a feature centroid (or point) and its nearest neighbor's centroid (or point). It then averages all the distances to determines if the distance between the points are based on random chance.
This Average Nearest Neighbor is computed from the CTA Bus Stops Map (see Density Map example)
Spatial Statistics:

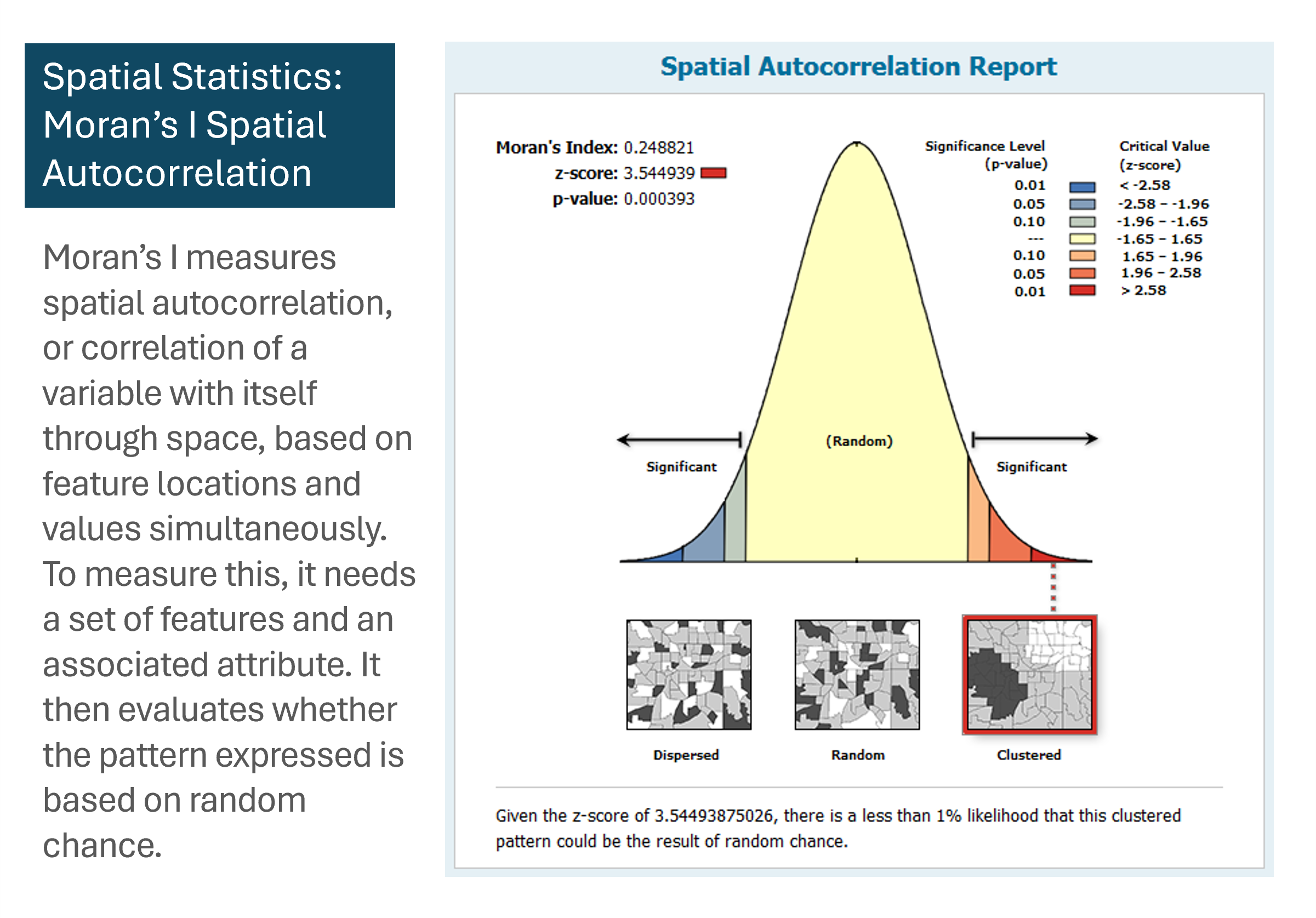

Moran's I Spatial Autocorrelation
Moran's I measures spatial autocorrelation, or correlation of a variable with itself through space,

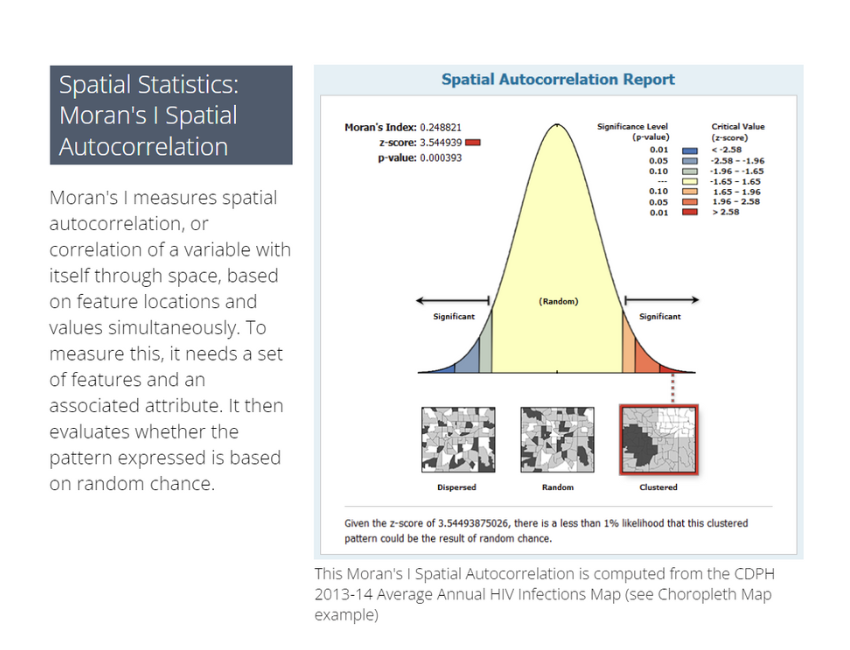

based on feature locations and values simultaneously. To measure this, it needs a set of features and an associated attribute. It then evaluates whether the pattern expressed is based on random chance.
This Moran's I Spatial Autocorrelation is computed from the CDPH 2013-14 Average Annual HIV Infections Map (see Choropleth Map example)
